描述

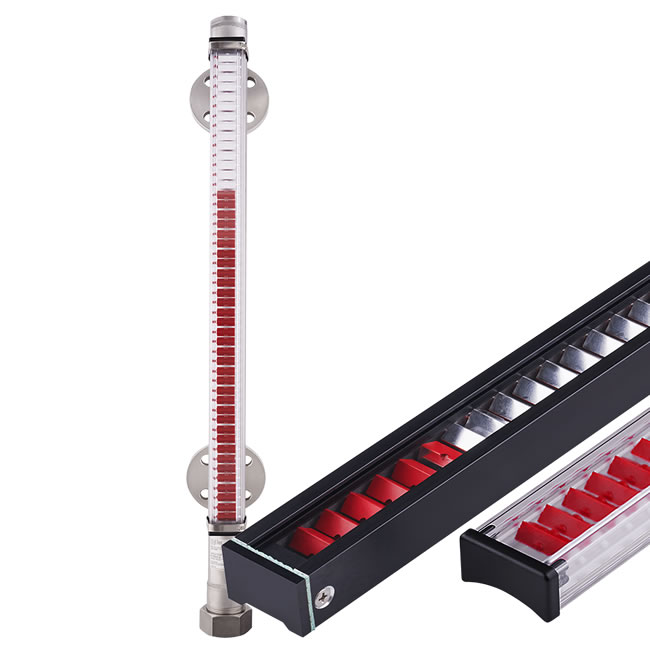

LevelSite是 Barksdale 公司专为在严苛环境下安全可靠地测量液位而设计的坚固耐用的磁性液位指示器。其坚固的不锈钢结构可提供直接的视觉指示，无需接触工艺流体，从而避免了其他液位指示技术常见的泄漏和溢出问题。

磁性液位指示器（通用名：磁翻板 / 磁浮子液位计 Magnetic Level Indicator/Gauge）核心工作原理：基于阿基米德浮力定律 + 非接触磁耦合效应双原理工作；主导管与设备罐体连通形成连通器，管内带永磁体的磁性浮子跟随罐内液位同步升降；浮子磁场穿透无导磁金属管壁，驱动外部显示面板红白双色磁翻柱翻转 180°；液位上升翻柱由白变红、下降由红变白，红白分界面即为实际液位高度，无需供电即可现场直观读数。利用磁耦合原理，带有永磁体的浮子跟踪密封腔内的液位，驱动外部旋转的指示旗组件，即使在恶劣条件下也能提供清晰、高可见度的指示。

LevelSite将直接视觉指示、连续监测和简易控制集成于一体，并可选配附件以增强功能。如今，LevelSite采用模块化设计和标准化配置，在附件的选择、订购和集成方面实现了前所未有的便捷性，确保在各种应用场景中快速部署——体验卓越性能。

旁路液位指示器 磁翻板液位计 / 磁浮子液位计 磁性液位指示器
Bypass Level Indicator Levelsite Barksdale LevelSite magnetic level indicator

特征

- 便于液位监测的视觉指示
- 与点位开关和连续式
- 液位变送器兼容，用于液位控制
- 模块化设计：可配置为包含指示器、
- 发射器和限位开关的套件。
- 针对不同市场的各种认证
- 应用范围广泛，适用于标准、
- 加压和低温环境。

应用

- 海洋
- 石油和天然气
- 工业、OEM、暖通空调
- 发电
- 水和废水

Bypass Level Indicator Barksdale LevelSite magnetic level indicator
Levelsite

Description
LevelSiteis Barksdale’s robust magnetic level indicator engineered for safe, reliable liquid level measurement in demanding environments. Its rugged stainless-steel construction provides direct visual indication without exposing process fluid, eliminating leaks and spills common with other level indication technologies.

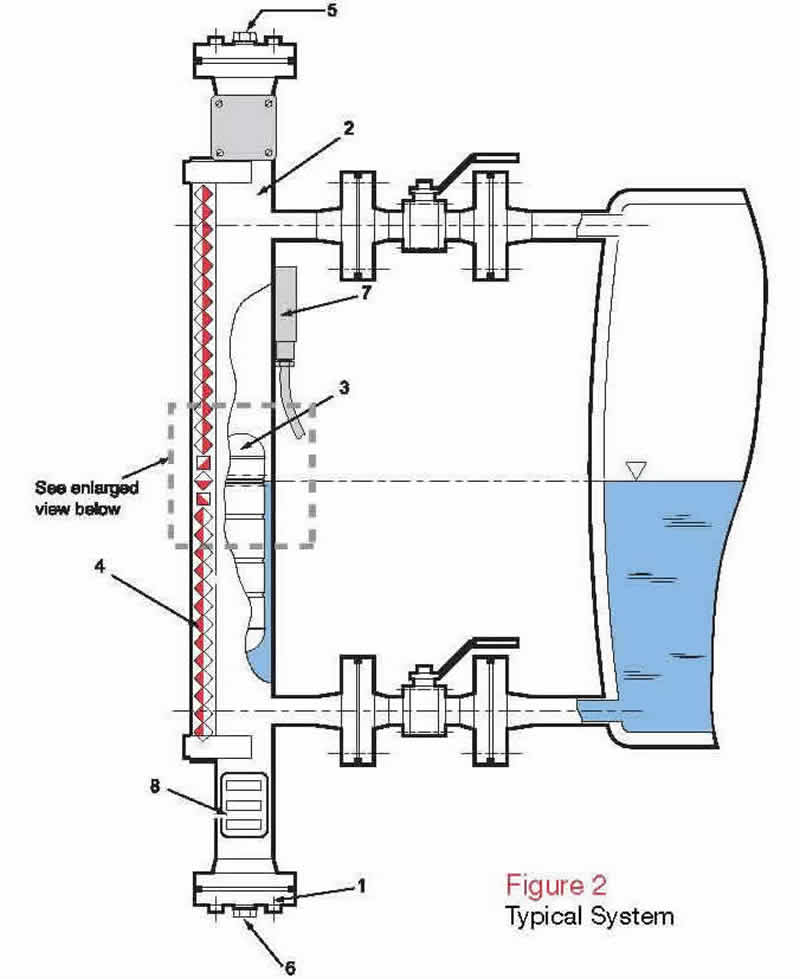

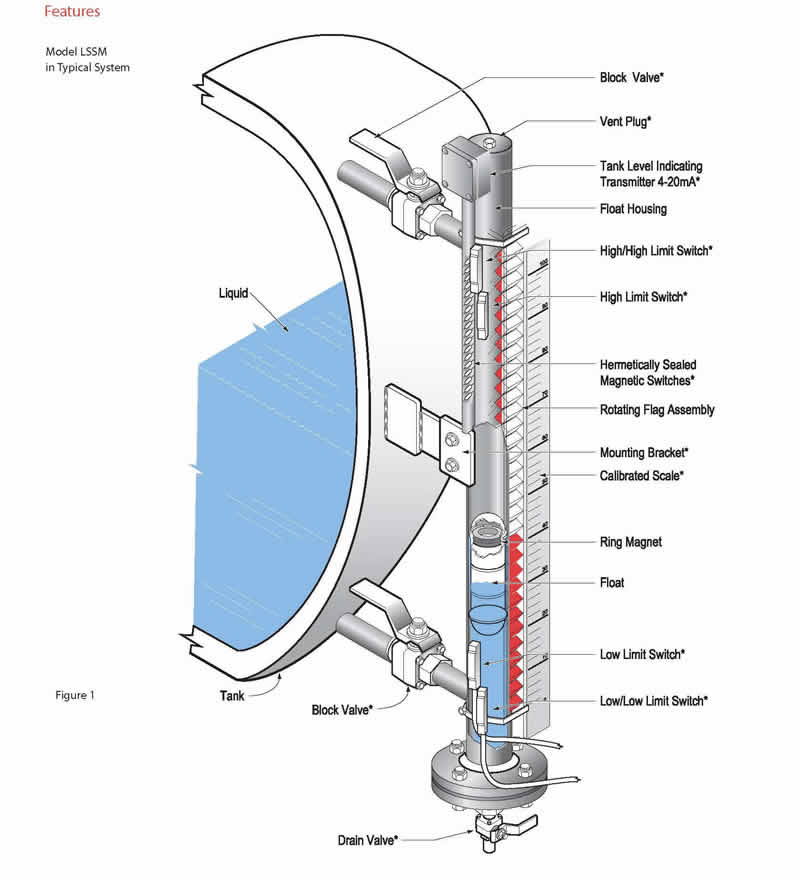

Using a magnetic coupling principle, a float with a permanent magnet tracks the liquid level inside a sealed chamber, driving an external rotating flag assembly for clear, high-visibility indication even under harsh conditions.

LevelSitedelivers direct visual indication, continuous monitoring, and simple control in one package, with optional accessories for enhanced functionality. Now featuring a modular design and standardized configurations, LevelSiteintroduces a new level of simplicity in selection, ordering, and integration with accessories, ensuring faster deployment across diverse applications – see the difference.

Features
Visual indication for convenient level monitoring
Compatibility with point level switches and continuous
transmitters for level control
Modular Design: Configurable as kits including indicator,
transmitter, and limit switch
Variety of certifications for different markets
Application Versatility making it suitable for standard,
pressurized, and cryo environments
Applications
Marine
Oil and Gas
Industrial, OEM, HVAC
Power Generation
Water and Wastewater
