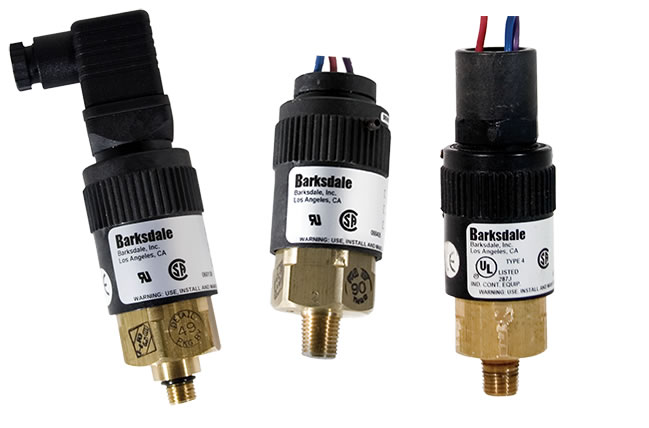

Barksdale巴士德 96201,96211,96221系列紧凑型压力开关
Barksdale巴士德 96201,96211,96221系列紧凑型压力开关Series 96201,96211,96221 Compact Pressure Switch 7500psi
Barksdale Series 96201,96211,96221 Compact Pressure Switch
Barksdale巴士德 机械式压力开关 Mechanical Pressure Switches

96201,96211,96221系列描述

96201系列压力开关在结构紧凑,经济耐用。提供塑料,黄铜或不锈钢等多种外壳选择,客户可根据应用的实际需要定制开关。当选择特定的电器 连接,开关可具有NEMA4 的防水等级。 增加了可选的DIN电气连接器,便于安装和维护。 96201系列压力开关可用于控制真空高达7500 psi的压力,是满足苛刻工业应用的选择。 The Series 96201 Pressure Switches offer a durable and versatile solution to your pressure control problems in a compact, economical package. A wide range of factory options is available in plastic, brass or stainless steel, allowing the switch to be custom configured to the exact needs of your application. With the addition of an optional conduit connector, the switch becomes watertight and bears a NEMA 4 rating. The addition of optional DIN electrical connector allows for ease of installation and maintenance. Designed to control pressures from vacuum up to 7500 psi, the Series 96201 Pressure Switches are an outstanding choice to meet your demanding industrial applications.



96201、96211、96221系列紧凑型开关

Barksdale 96201、96211、96221系列紧凑型开关 资料下载



Series 96201, 96211, 96221
Series 96201, 96211, 96221 Compact Switch
96201、96211、96221系列 紧凑型开关

Compact, economical pressure from 100 - 7,500 psi

Pressure or Vacuum

Applications
Pump & compressor monitoring
Air proving in HVAC systems
Engine monitoring
Machine tools
Hydraulic power units
Mobile hydraulics
Medical equipment
Irrigation systems
General industrial applications

Miscellaneous
Pressure Adjustment Instructions
Datasheets
Pressure Switch Products Supplemental Guide
Series 96201, 96211, 96221 Data Sheet
Details

紧凑,经济的压力范围为100-7,500 psi

压力或真空

应用领域
泵和压缩机监控
暖通空调系统中的空气验证
发动机监控
机械工具
液压动力单元
移动液压
医疗设备
灌溉系统
一般工业应用

压力调整说明
数据表
压力开关产品补充指南
96201、96211、96221系列数据表
细节



描述Description

96201系列压力开关采用紧凑,经济的包装,为您的压力控制问题提供了一种耐用而通用的解决方案。塑料,黄铜或不锈钢可提供多种出厂选择,从而可以根据您的应用的实际需求对开关进行定制配置。通过增加可选的导管连接器,该开关将变得水密,并具有NEMA 4等级。可选的DIN电连接器的添加使安装和维护变得容易。96201系列压力开关设计用于控制真空度至7500 psi的压力,是满足您苛刻的工业应用的选择。
The Series 96201 Pressure Switches offer a durable and versatile solution to your pressure control problems in a compact, economical package. A wide range of factory options is available in plastic, brass or stainless steel, allowing the switch to be custom configured to the exact needs of your application. With the addition of an optional conduit connector, the switch becomes watertight and bears a NEMA 4 rating. The addition of optional DIN electrical connector allows for ease of installation and maintenance. Designed to control pressures from vacuum up to 7500 psi, the Series 96201 Pressure Switches are an outstanding choice to meet your demanding industrial applications.

96201,96211,96221系列特征

  • 结构紧凑Compact size
  • 低压、高压及真空Low & high pressures including vacuum
  • 选择多样,可客户化Extremely versatile
  • 可选DIN和导管连接器Optional DIN and conduit connectors
  • NEMA 1&4; IP65
  • 单刀双掷快动开关Single pole double throw snap action switching
  • 出厂预置或现场可调Factory preset or field adjustable



96201,96211,96221系列技术规格

精度: ±2% 满量程
开关:
类型:
额定电压:

单刀双掷快动开关; 单开关点
5安培@ 125/250 VAC(BB类微动开关-标准)
10安培@ 125/250 VAC(CC级微动开关)
5安培@ 30 VDC(BB类和CC类微动开关)
浸润部件:
工艺管接头:
O型圈密封件与膜片:
活塞(96201型):

黄铜(标准); 416不锈钢(可选)
丁腈橡胶(标准)
不锈钢; 特氟龙支撑环
电气连接: 12“长导线,#18 AWG(标准)
外壳等级: NEMA 1(塑料-标准)
NEMA 4(订购-T4或-T5)
IP65(订购T2 DIN)
压力连接: 1/4“NPT外螺纹(标准)
认证:
UL:

CSA:

UL认可组件(UR);选择电气连接(-T4或-T5选件)时,具有UL认证。UL文件号E42816。
CSA#LR22355
温度范围:
96201 系列:
96211 系列:
96221 系列:

-40°至+ 165°F(-40°至+ 74℃)
-20°至+ 165°F(-29°至+ 74℃)
0°至+ 165°F(-18°到+74 C)
调整能力: 型号L96201,L96211和L96221为出厂预设并永久锁定。
96201,96211和96221可通过外部调节现场设定。
压力设定点调整: 用开口扳手固定六角体;
手转调节套:
顺时针(对于真空型号逆时针)增加。
逆时针(真空型号为顺时针)减小设定值。
装运重量: 约0.95磅



接线代码

  压力
真空
引线 颜色 M12插头(M)
插脚
颜色 M12插头(M)
插脚
常闭 蓝色 2 红色 3
公共 紫色 1 紫色 1
常开 红色 3 蓝色 2
